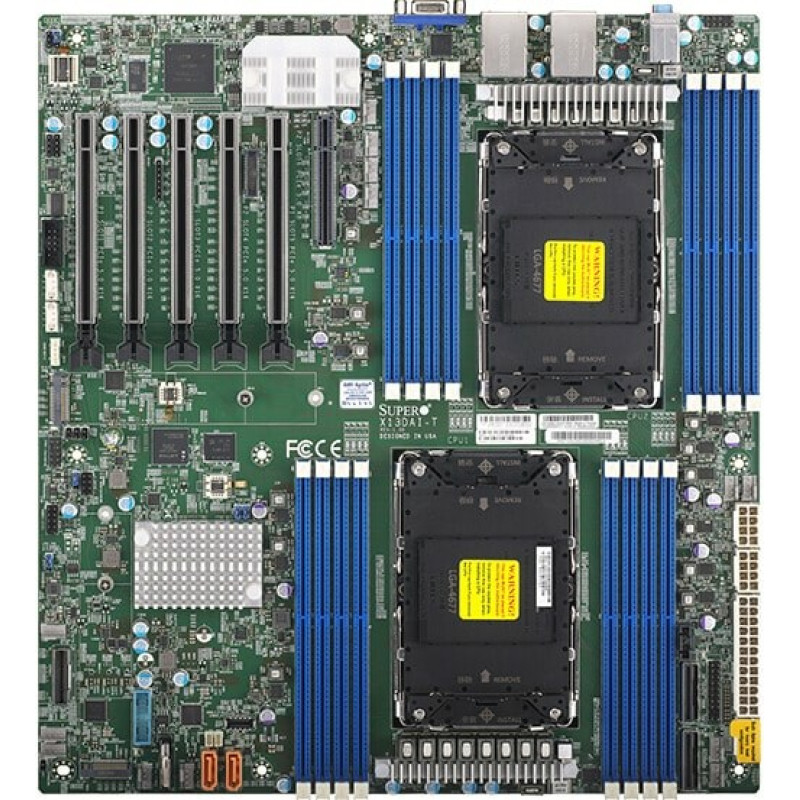

Supermicro MBD-X13DAI-T Intel C741 LGA 4677 (Socket E) Extended ATX

Supermicro MBD-X13DAI-T Intel C741 LGA 4677 (Socket E) Extended ATX

Delivery to the store in 5 to 7 business days.
ID: 211087
Model MBD-X13DAI-T-O
Barcode 672042886364
Brand: SUPERMICRO
1,140.62€
(Ex Tax: 919.86€)
Payment options

Delivery options

omniva  venipak



Description
Description
Processor socketLGA 4677 (Socket E)
Processor manufacturerIntel
Compatible processor seriesIntel® Xeon®
Motherboard chipsetIntel C741
Motherboard chipset familyIntel
Motherboard form factorExtended ATX
Component forServer
Supported memory module capacities64GB
Supported memory clock speeds4400
Maximum internal memory4 TB
Memory voltage1.1 V
Supported memory typesDDR5-SDRAM
Number of memory slots16
Maximum RDIMM memory256 GB
ECC сompatibilityECC
Operating relative humidity (H-H)8 - 90%
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 95%
Width307.3 mm
Depth332.7 mm
LAN controllerBroadcom BCM57416
Ethernet interface type10 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 2.0 connectors2
Power fan connectorYes
Number of COM connectors1
Number of SATA III connectors8
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
TPM connectorYes
System Management BIOS (SMBIOS) version3.5
BIOS typeUEFI AMI
ACPI version6.4
Supported storage drive interfacesSATA III
RAID levels10
RAID supportYes
Ethernet LAN (RJ-45) ports2
COM ports quantity1
USB 2.0 ports quantity4
VGA (D-Sub) ports quantity1
PCI Express x8 slots1
PCI Express x16 (Gen 5.x) slots5
