Home Computers and equipment Computer components Power Supplies (PSUs) Asus ROG Loki SFX-L 850W Platinum White power supply unit 24-pin ATX

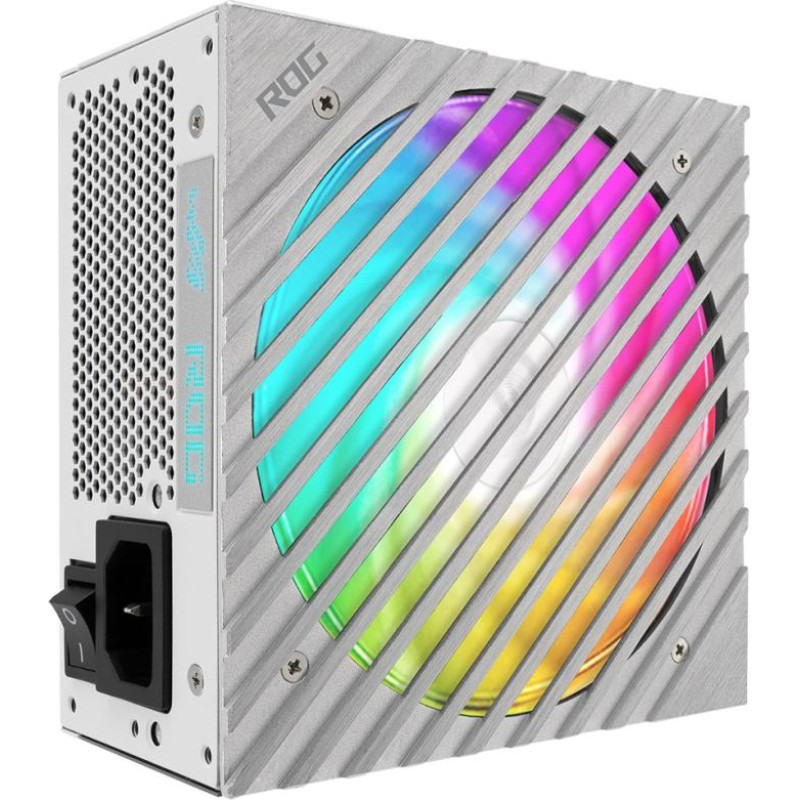

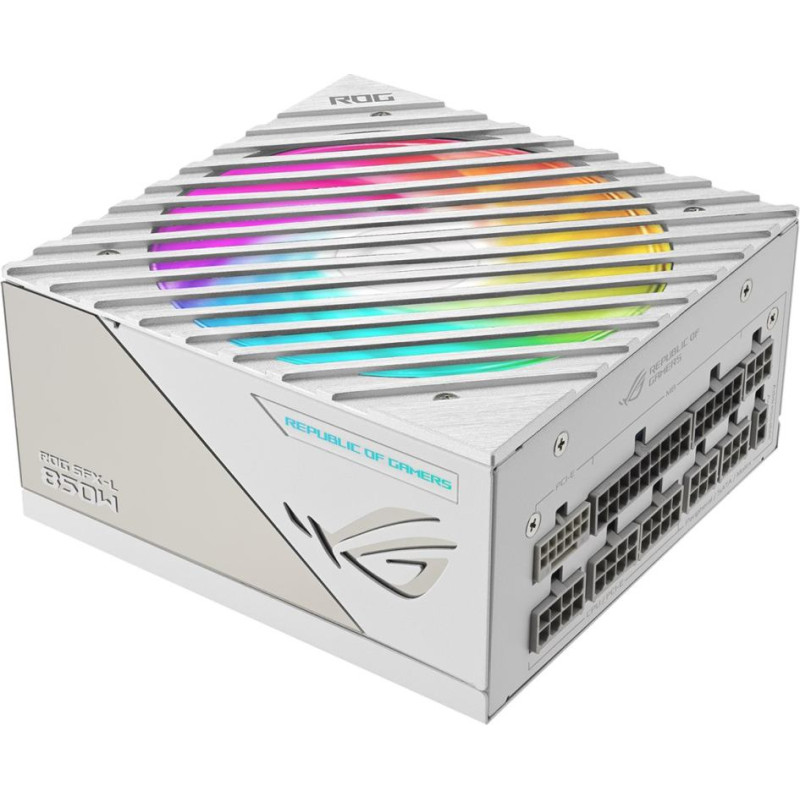

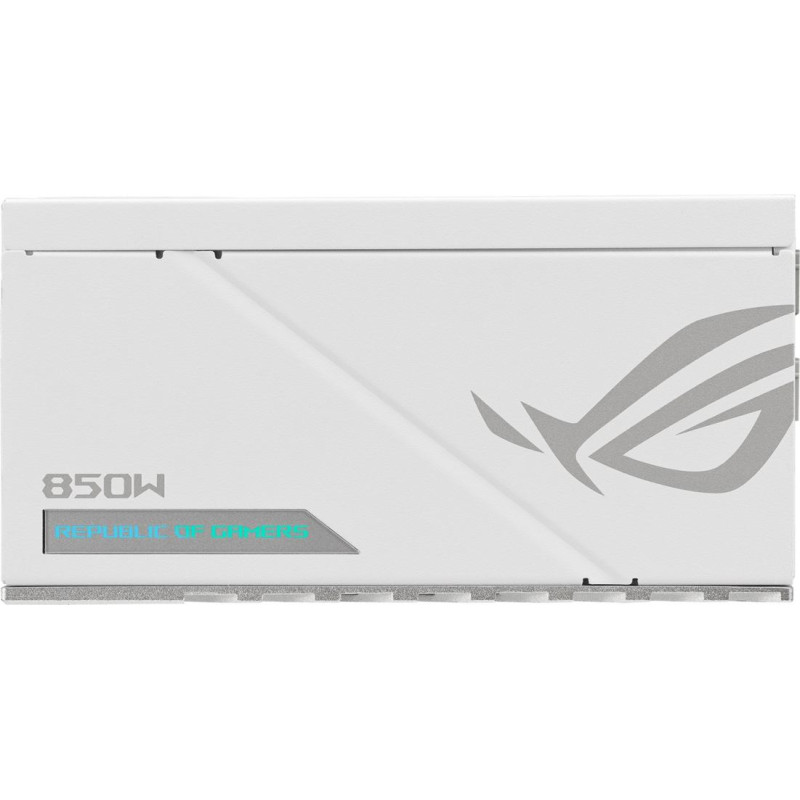

Asus ROG Loki SFX-L 850W Platinum White power supply unit 24-pin ATX

Asus ROG Loki SFX-L 850W Platinum White power supply unit 24-pin ATX

Delivery to the store in 5 to 7 business days.
ID: 133685
Model 90YE00N2-B0NA00
Barcode 4711081722229
Brand: ASUS
203.80€
(Ex Tax: 164.36€)
Payment options

Delivery options

omniva  venipak



Specification
Description
Specification
80 plus sertifikācija: 80 PLUS Platinum
atbalstāmie mātesplates formas faktori: ATX
atbilstības sertifikāti: RoHS
augstums: 63,5 mm
cpu barošanas savienotājs (4 + 4 pin): Jā
cpu strāvas kabeļa garums: 55 cm
dzesēšanas tips: Aktīvs
dzesētāja ass tips: Gultnis
dziļums: 125 mm
iepakojuma augstums: 100 mm
iepakojuma dziļums: 190 mm
iepakojuma platums: 285 mm
iepakojuma svars: 2,5 kg
iepakojuma tips: Kaste
ilgtspējas atbilstība: Jā
iluminācija: Jā
integrēts on/off slēdzis: Jā
jaudas aizsardzības apraksts: Pārslodze, Pārspriegums, Pārlāde, Pārkaršana, Īssavienojums, Zem sprieguma
kabeļu tips: Pilnībā modulāra uzbūve
kopējā jauda: 850 W
kopējā strāva (+12v): 850 W
kopējā strāva (+3,3v): 110 W
kopējā strāva (+5v): 110 W
kopējā strāva (+5vsb): 12,5 W
kopējā strāva (-12v): 9,6 W
maiņstrāvas ievades spriegums: 100 - 240 V
maksimālā izvades strāva (+12v): 70,8 A
maksimālā izvades strāva (+3.3v): 20 A
maksimālā izvades strāva (+5v): 20 A
maksimālā izvades strāva (+5vsb): 2,5 A
maksimālā izvades strāva (-12v): 0,8 A
mātesplates barošanas vada garums: 45 cm
mātesplates strāvas konektors: 24-pin ATX
mērķis, rezultāts: PC (dators)
pci express barošanas savienotāji (16 kontakti): 1
pci express strāvas kabeļa garums: 45 cm
pci express strāvas konektori (8-pin): 3
periferālā (molex) strāvas kabeļa garums: 600 mm
perifērās (molex) strāvas savienotāji (4-pin): 4
platums: 125 mm
produkta krāsa: Balts
sata strāvas kabeļa garums: 600 mm
sata strāvas savienotāju skaits: 6
strāvas padeves bloka (psu) formas faktors: SFX-L
svars: 1,81 kg
ventilatora diametrs: 12 cm
ventilatoru skaits: 1 ventilators/ ventilatori
Description
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum White Edition brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.

COOLING

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.

Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.

Lambda A Certification
Quietly deviant
On average, ROG Loki emits less than 25 dB of noise – earning a coveted Cybenetics Lambda A certification.

ENGINEERING

80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

EXPERIENCE

ARGB-illuminated Fan & Aura Sync
Magical glow

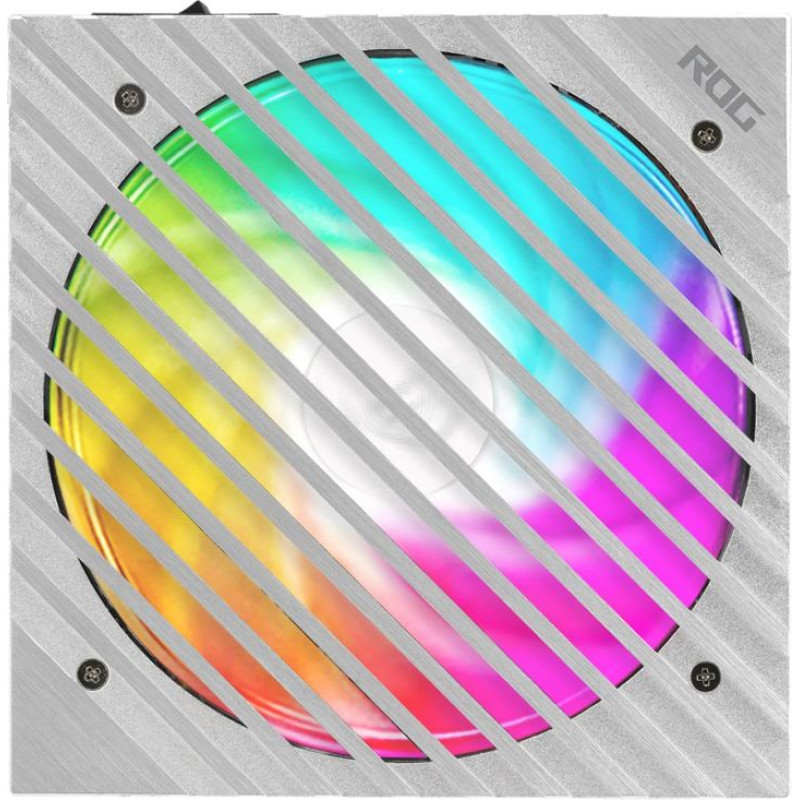

The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

10-Year Warranty
A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 850W Platinum White Edition that we back it with a 10-year worldwide warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

Total power850 W
AC input voltage100 - 240 V
Combined power (+3.3V)110 W
Combined power (+12V)850 W
Combined power (+5V)110 W
Combined power (-12V)9.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)20 A
Max output current (+12V)70.8 A
Max output current (+5V)20 A
Max output current (-12V)0.8 A
Max output current (+5Vsb)2.5 A
Power protection featuresOver power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Motherboard power connector24-pin ATX
Peripheral (Molex) power connectors (4-pin)4
Motherboard power cable length45 cm
Number of SATA power connectors6
SATA power cable length600 mm
Peripheral (Molex) power cable length600 mm
PCI Express power connectors (8-pin)3
PCI Express power connectors (16-pin)1
PCI Express power cable length45 cm
CPU power connector (4+4 pin)Yes
CPU power cable length55 cm
Cabling typeFully-Modular
PurposePC
Power supply unit (PSU) form factorSFX-L
80 PLUS certification80 PLUS Platinum
Supported motherboard form factorsATX
Bearing technologyBall bearing
Product colourWhite
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
IlluminationYes
On/off switchYes
Compliance certificatesRoHS
Width125 mm
Depth125 mm
Height63.5 mm
Weight1.81 kg
Package width285 mm
Package depth190 mm
Package height100 mm
Package weight2.5 kg
Package typeBox
Sustainability complianceYes
