Uni-T UT705 Process Calibrator

Uni-T UT705 Process Calibrator

Delivery to the store in 5 to 7 business days.
ID: 219699
Model UT705
Barcode 6935750570180
Brand: UNI-T
309.27€
(Ex Tax: 249.41€)
Payment options

Delivery options

omniva  venipak



Description
Description

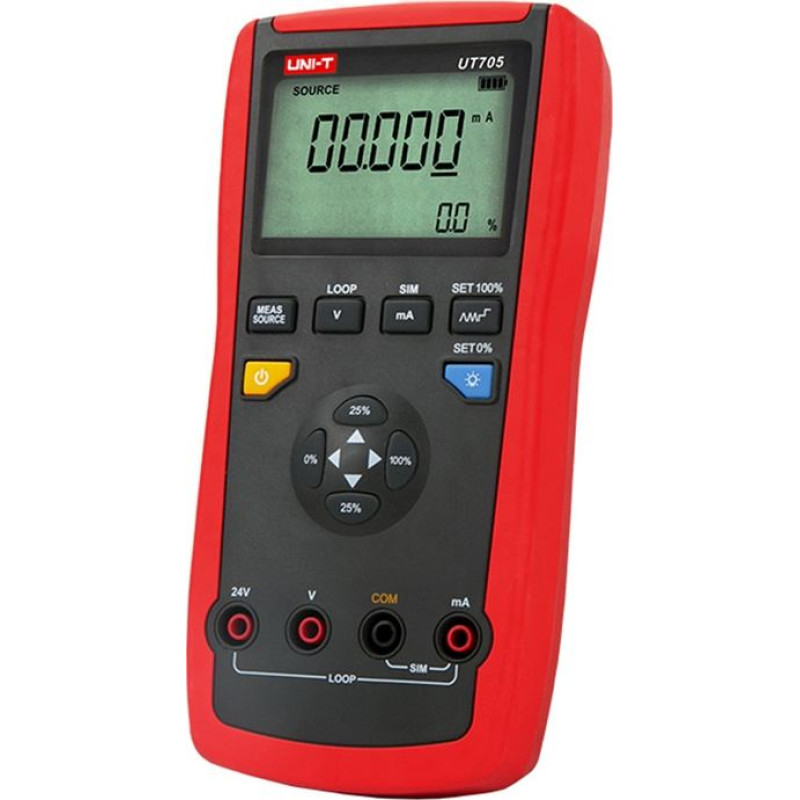

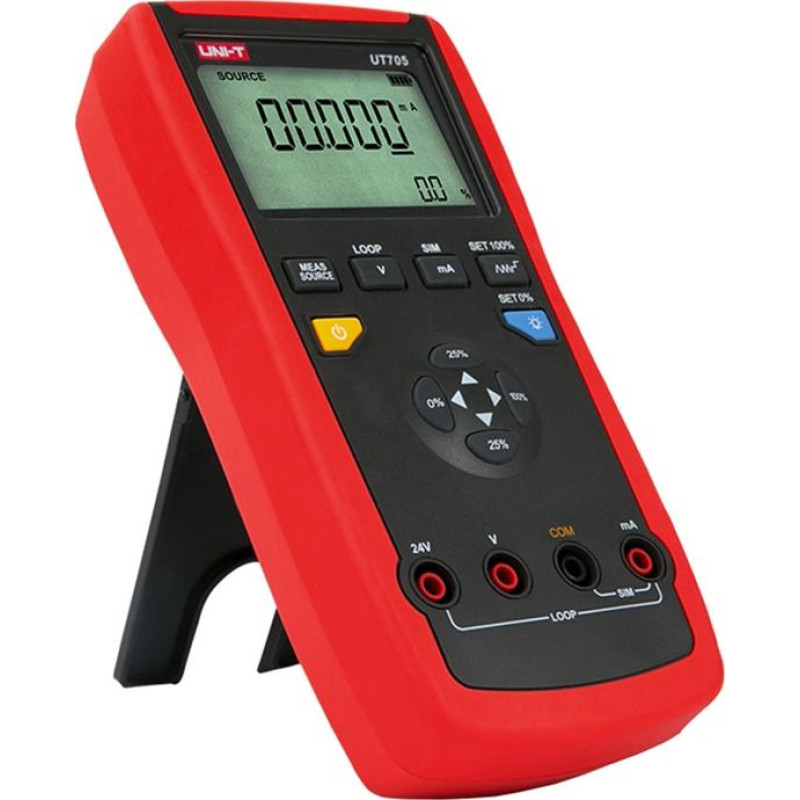

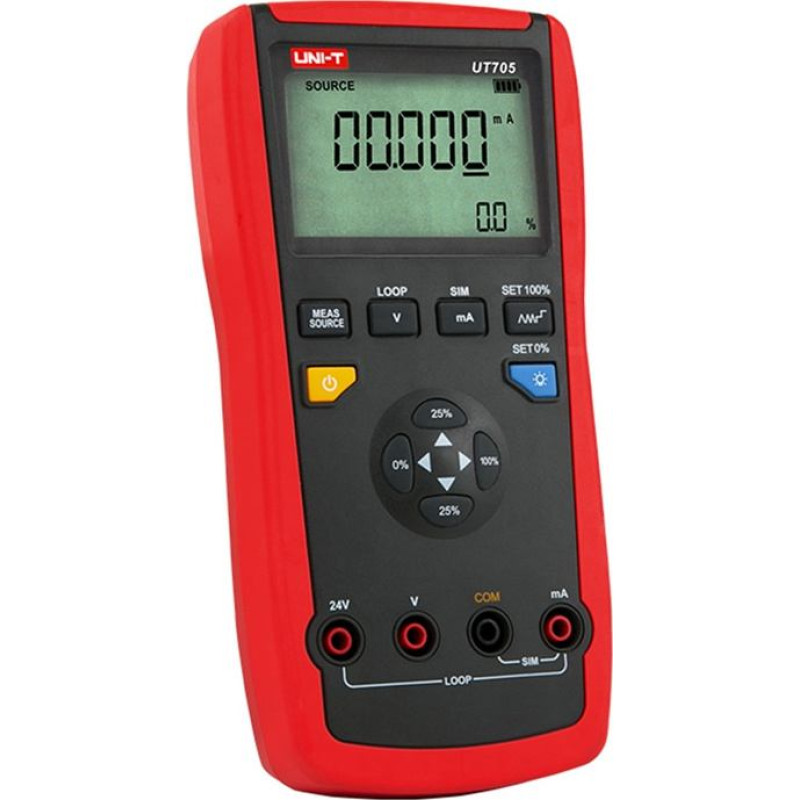

Uni-T UT705 process calibrator

The Uni-T UT705 is a current loop calibrator designed for calibration, diagnostics, and maintenance work in industrial automation systems. The device can measure DC voltage up to 30,000 V, as well as DC current and loop current up to 24,000 mA. It also supports DC current source, current simulation, and 24 V loop power supply functions, enabling comprehensive testing and monitoring of transducers and other process system components. High measurement accuracy of ±(0.02%+2) ensures reliable results during demanding calibration tasks.

Process signal calibrator that works with a multimeter during testing and verification of DC current values.

Features to streamline daily work

The UT705 is equipped with manual and automatic signal ramping functions, 25% and 100% range step modes, and the ability to save and recall settings, which significantly speeds up repetitive tasks. The backlit display makes it easy to read data in various lighting conditions, and the auto-off feature helps conserve energy. Weighing 410 g and measuring 96 × 193 × 47 mm, the device remains convenient for transport and daily use, and its resistance to drops from a height of 1 meter increases its durability during field and workshop work.

Two process signal calibrators connected by cables during simulation and measurement of a 4–20 mA current signal.

Included

  • Process calibrator
  • Test leads (1 pair)
  • 9V battery (6F22)
  • Carrying case
  • User manual

Specifications

ManufacturerUni-T
ModelUT705
Product typeProcess loop calibrator
DC voltage measurement range30.000 V ±(0.02% + 2)
DC current measurement range24.000 mA ±(0.02% + 2)
Loop current measurement range24.000 mA ±(0.02% + 2)
DC current source range24.000 mA ±(0.02% + 2)
DC current simulation range24.000 mA ±(0.02% + 2)
Loop power supply output24 V
Loop power supply accuracy10%
Ramping functionsSlow ramp, fast ramp, step ramp
Step functions25% of range, 100% of range
Settings memory (Save/Recall)Yes
LCD backlightYes
Auto power offYes
Drop resistance1 m
Power supply9V battery (6F22)
Display dimensions63 × 40 mm
ColorRed and gray
Dimensions96 × 193 × 47 mm
Weight410 g
CertificationsCE, UKCA
